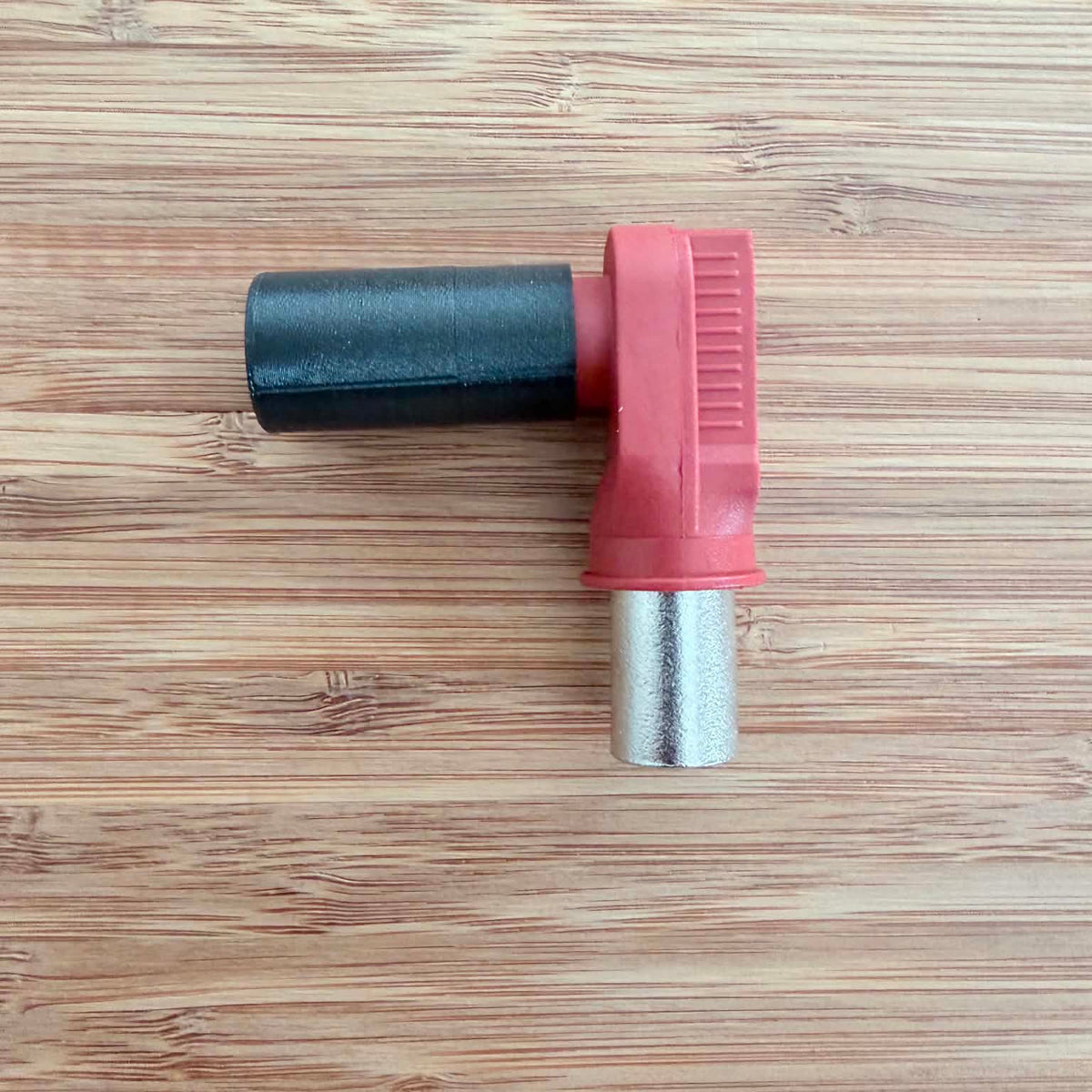

Female Threaded Radlok Pin Bundle

These pin were made to accept male threaded studs to conveniently thread on to things such as  alternator, starters, PDMs, etc. Each pin is nickel plated for the best conductivity result. These pins are rated up to 200A and can be used with the 2ga or  1/0 ga (0ga) Radloks. The pin is offered in the following thread sizes:

 - M8x1.25                                                                                                                                     - 5/16-18                                                                                                                                     - M6 x1.0

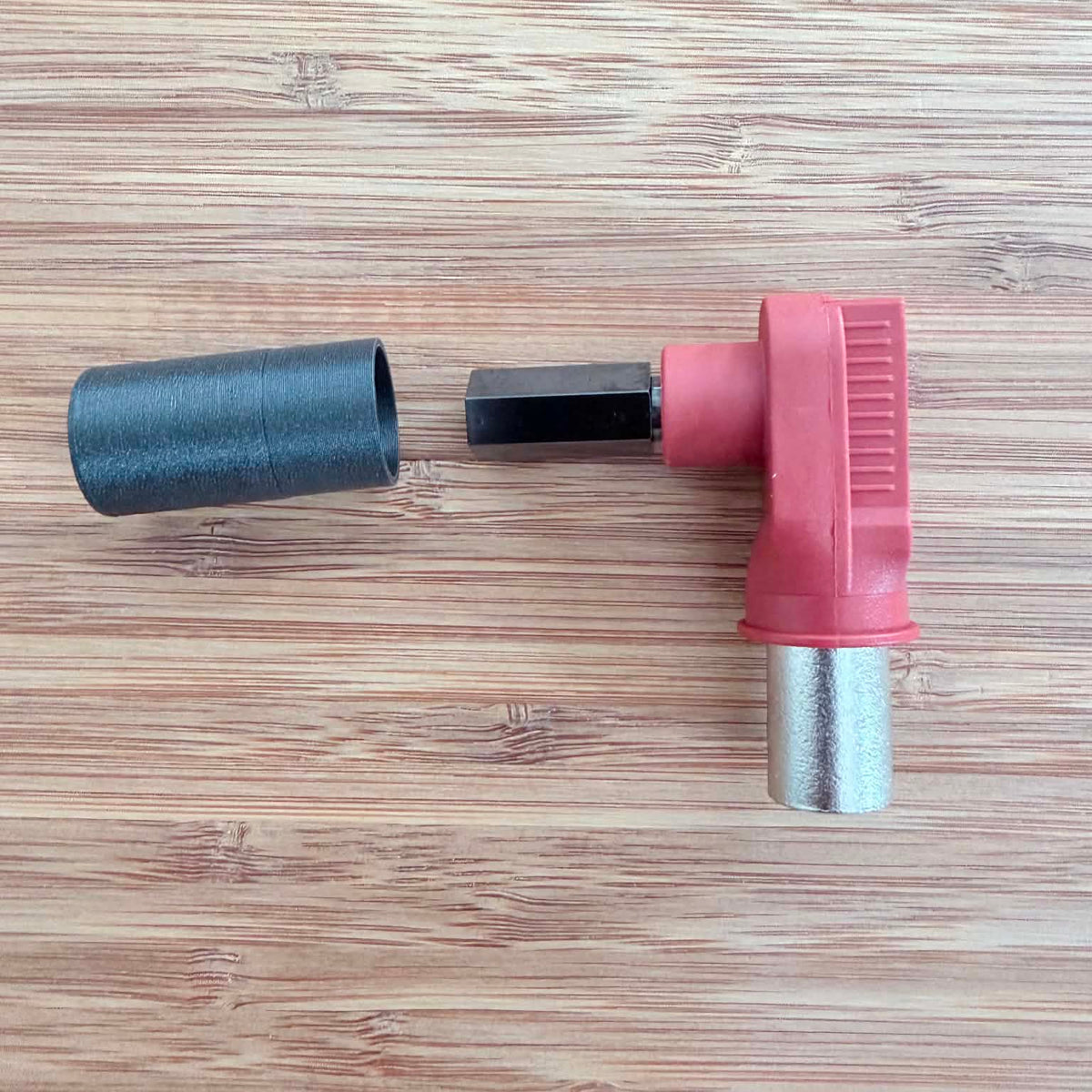

The M8 and 5/16 threaded pins come with a long hex shaft which allows you to trim it down to size to fit your application perfectly. The pin will come with a shell to help cover up the entire pin to prevent it from shorting out which can be trimmed to size as well. The bundle will come with the following

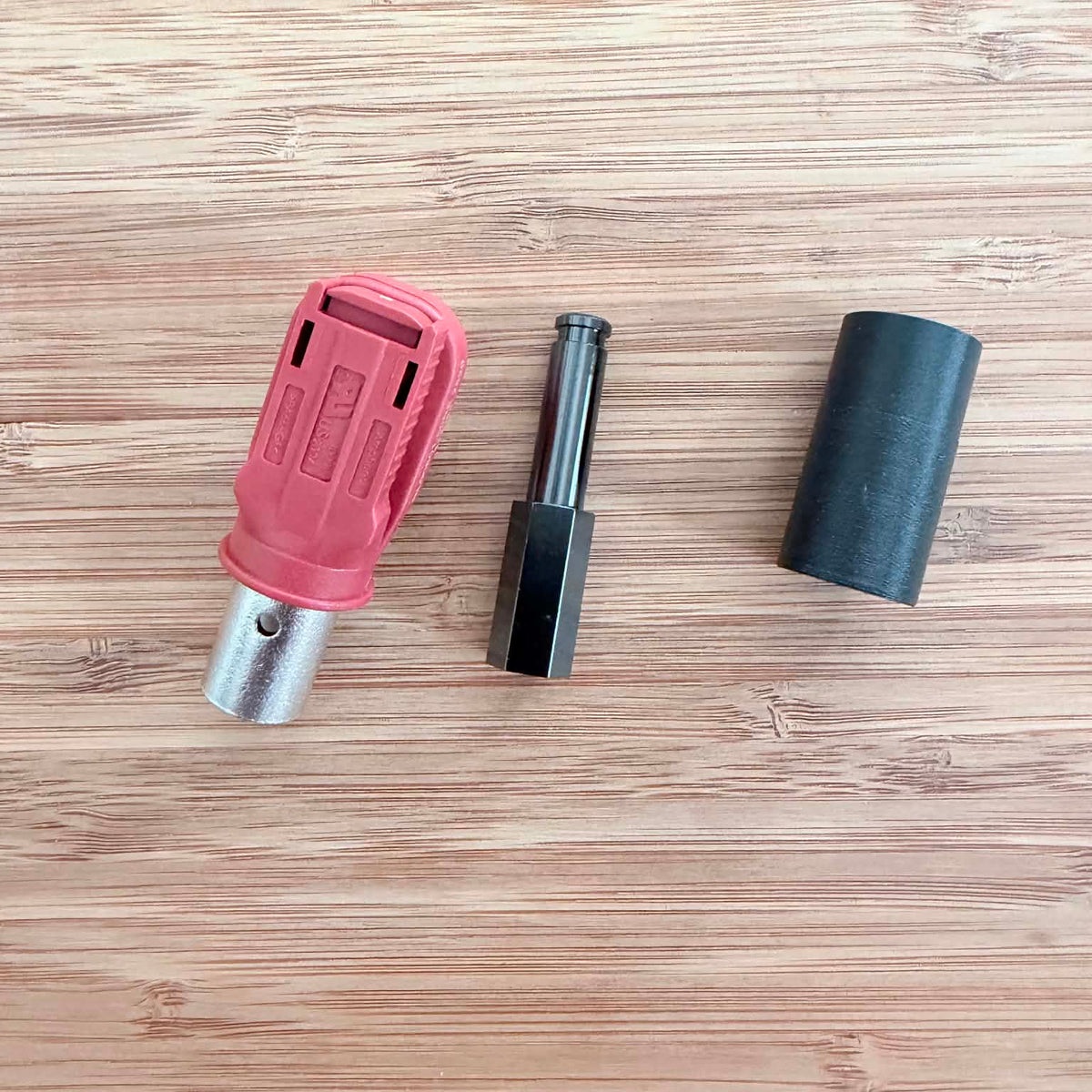

1x Radlok Connector                                                                                                                1x Female Threaded Pin                                                                                                            1x Pin and Radlok Cover                                                                                                            1x Wave Washer
